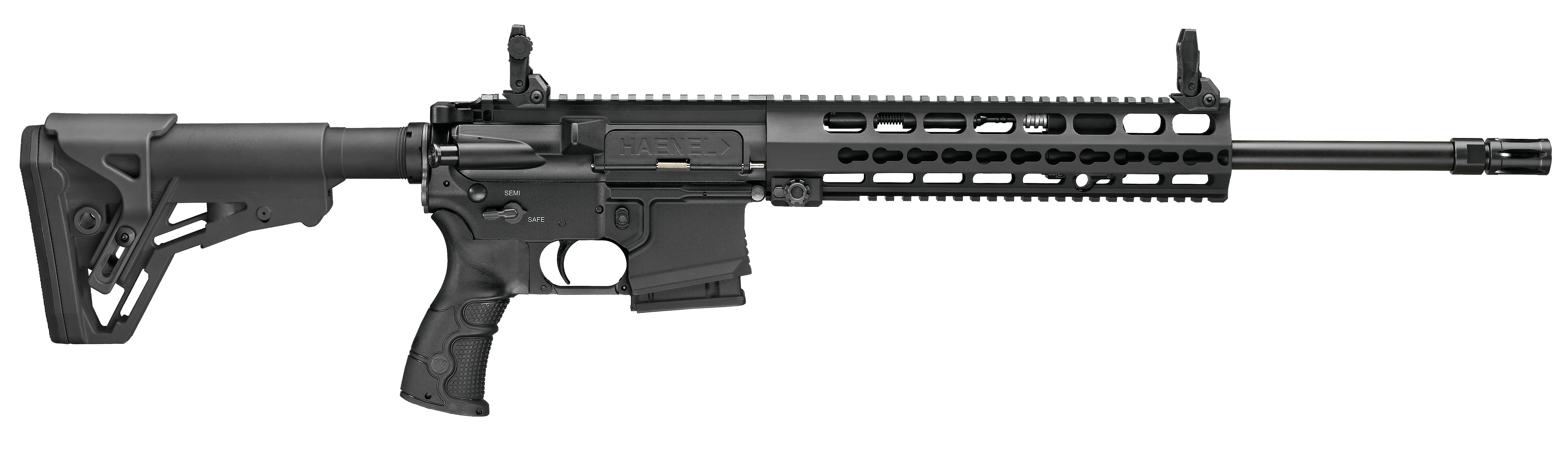

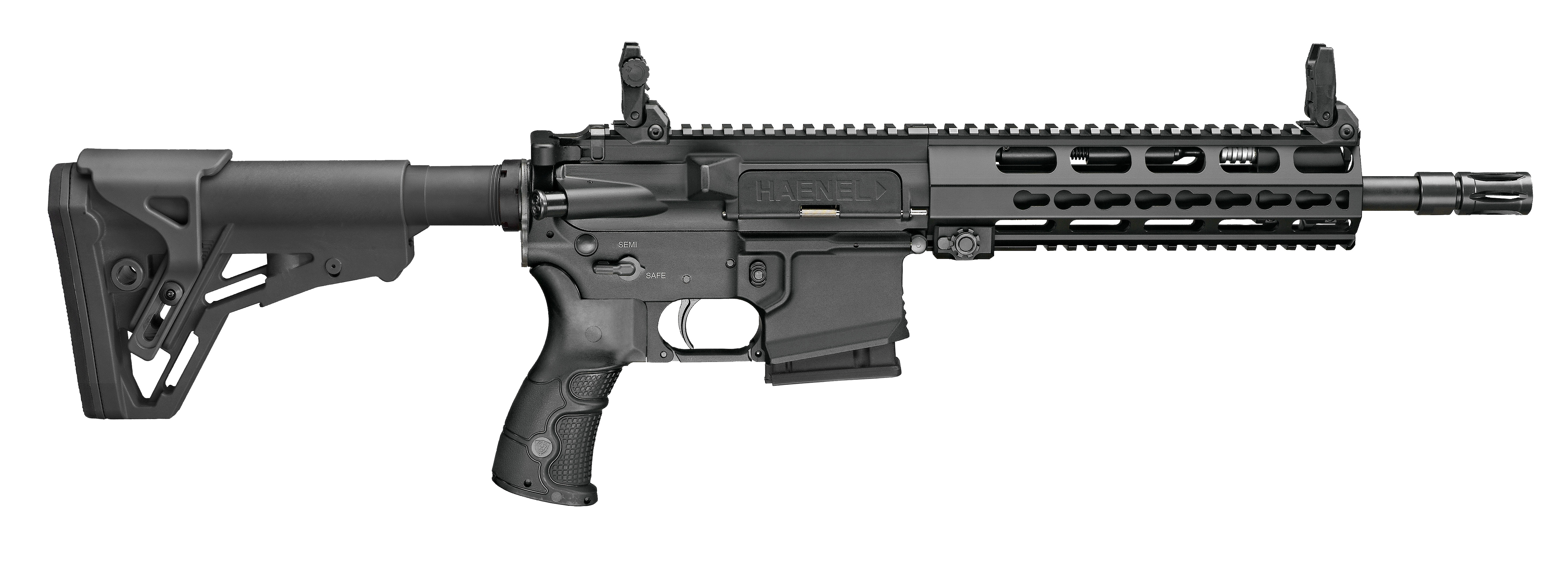

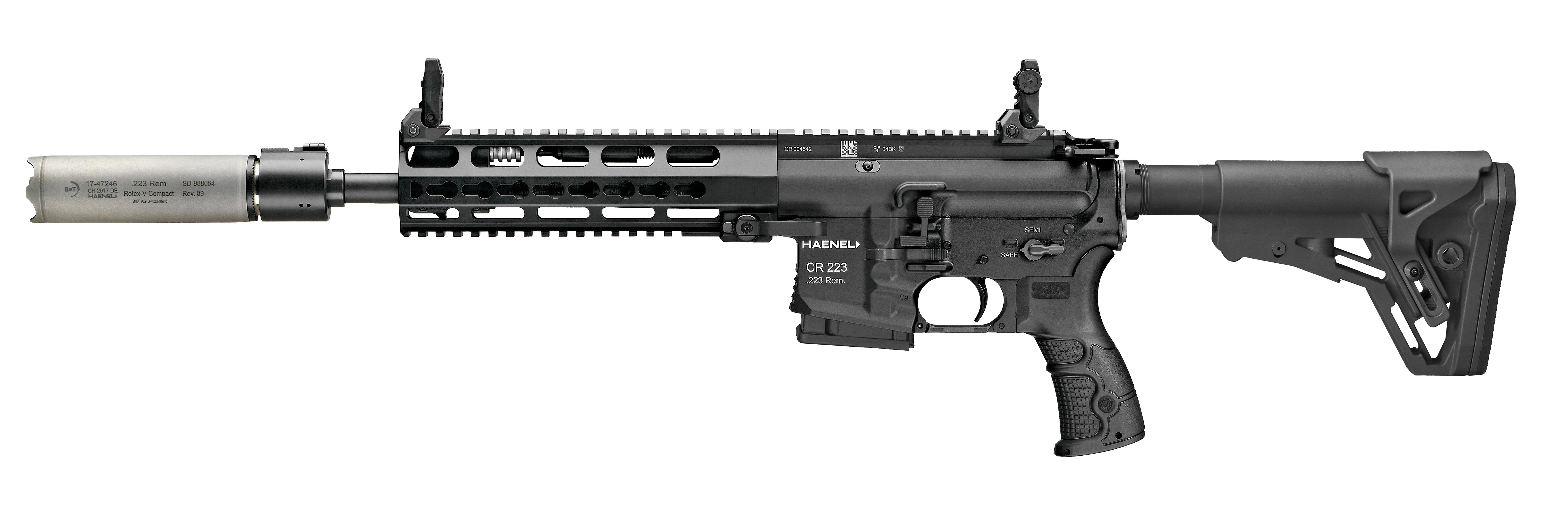

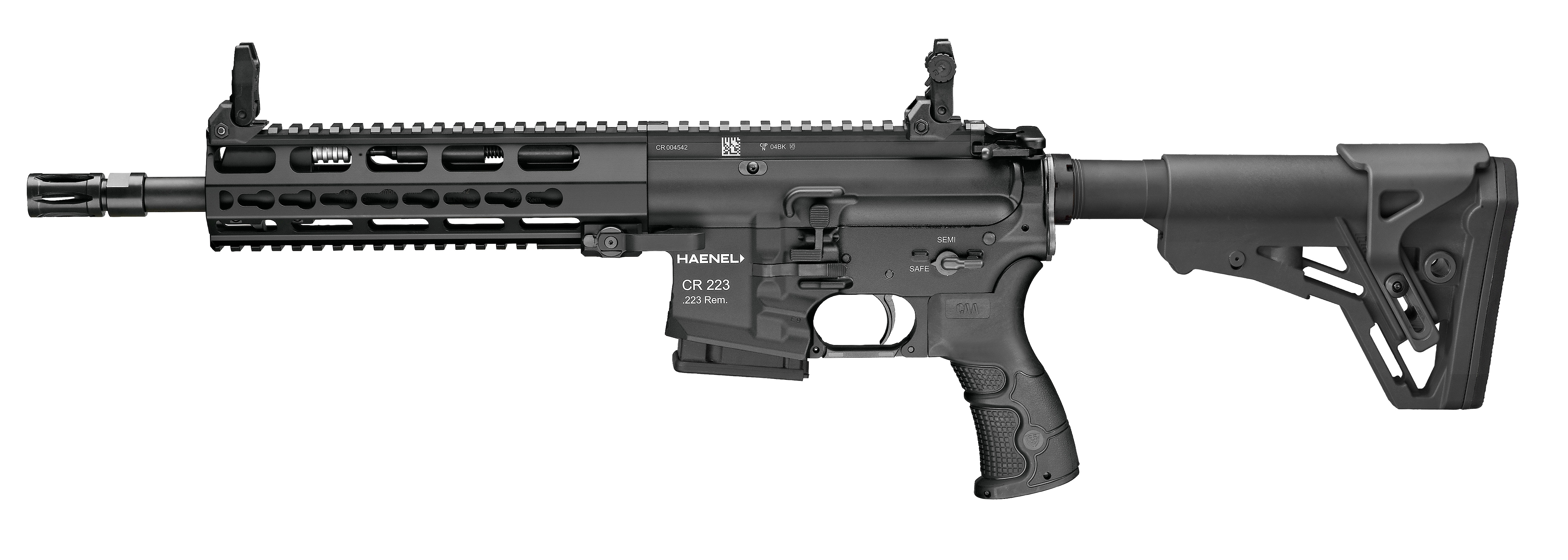

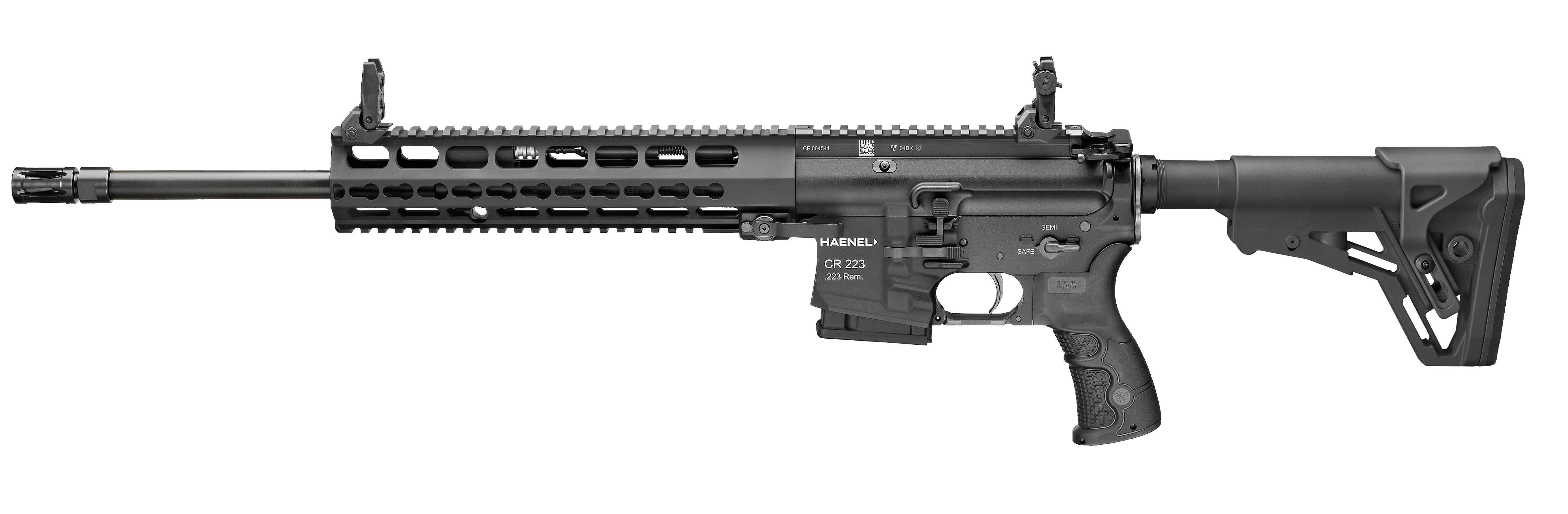

Haenel CR 223 2014121-99a

The Haenel CR223 in calibre .223 Rem. is the basic model of the CR series and is based on the M4/AR-15 system. It is fully compatible with the basics of this class. The indirect gas pressure loader is a Haenel development and improves the standard in many details. The CR223 has been introduced to many police forces and authorities as a semi-automatic.

Technical Details

Caliber: 5,56 x 45 mm (Civil: .223 Rem.)
Barrel length/ twist:  10,5“: 267mm, 7“  /   12,5“: 318mm, 9“   /   14,5“: 368mm, 9“   /   16,65“: 423mm, 9“
Overall length:  10,5“: 684mm – 769mm   /   12,5“: 748mm – 812mm   /   14,5“: 798mm – 883mm   /   16,65“: 853mm – 938mm
Buttstock modified M4-telescopic-buttstock, adjustable length in 6 stages
Flash hider A2 Standard (further options on request)
Handguard Hand guard with two NAR and two KeyMod rails, removable without tools
Weight:  10,5“: approx. 3,35 kg   /   12,5“: approx. 3,4 kg   /   14,5“: approx. 3,5 kg   /   16,65“: approx. 3,6 kg
Trigger Direct trigger with 3.200 g weight (optional Match trigger with 1.500 g)
Magazine capacity: 30 rounds (Civil: 10 rounds)
Safety firing pin safety, ambidextrous, 0°/60° or 0°/90°
Sight foldable mechanical sight

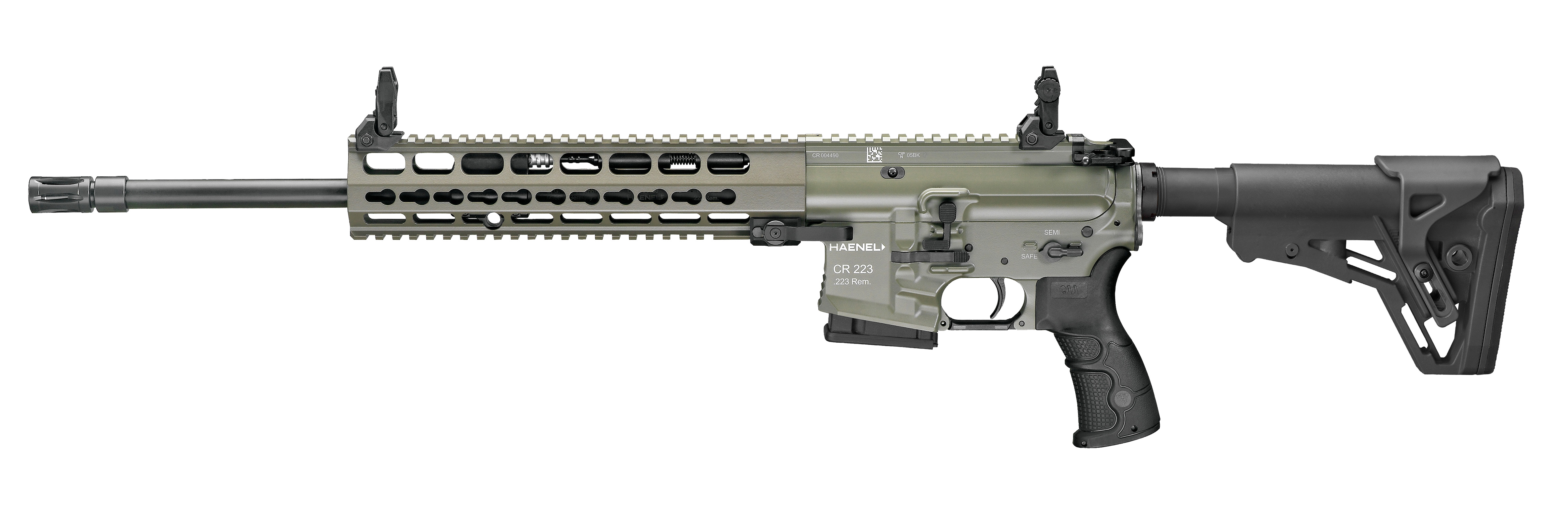

Colours:   sand (similar RAL 8000),   black  or  olive green (RAL 7013) / further colours on request
