Sightmark Wolverine CSR Red Dot Sight LQD Sightmark_RD_01
260,00 €
The add to cart button will appear once you select the values above
Specifications
| This product requires special licensing |

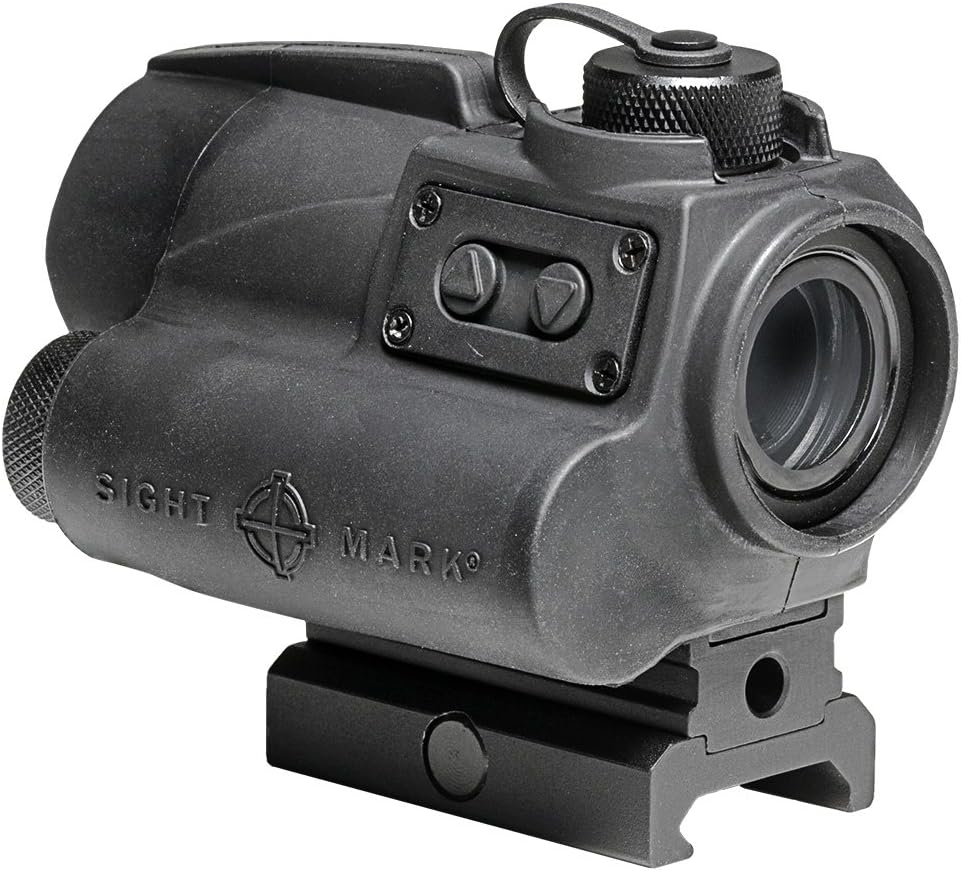

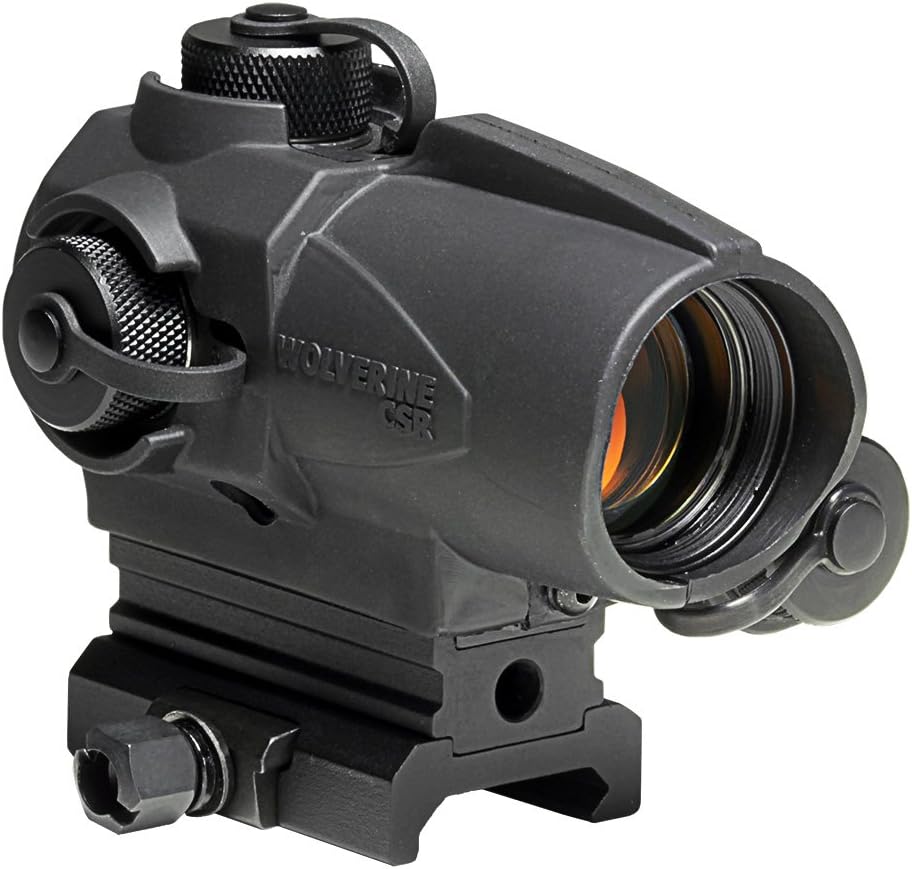

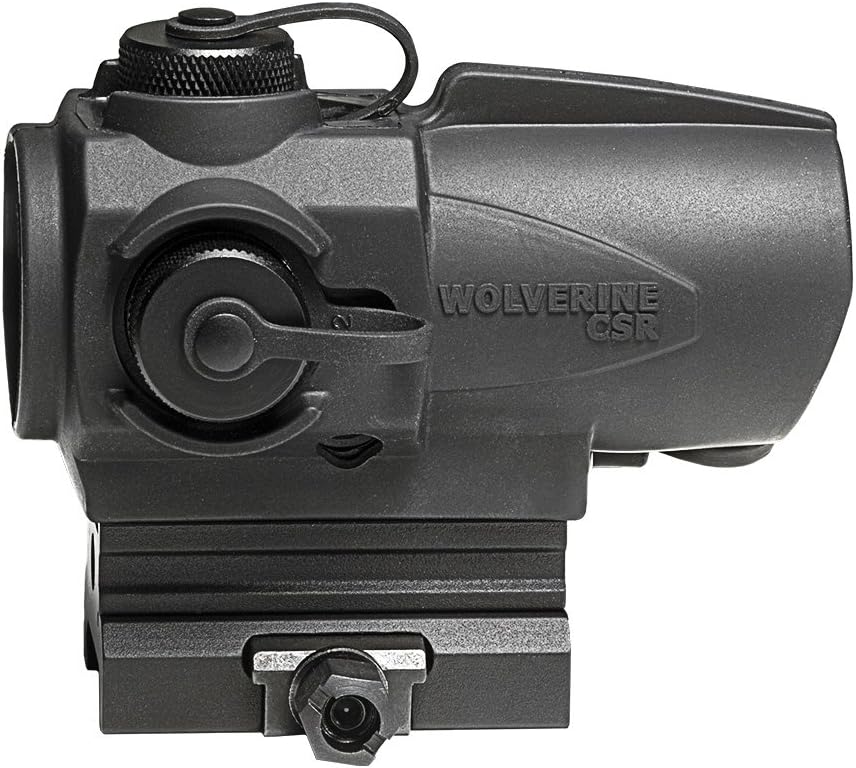

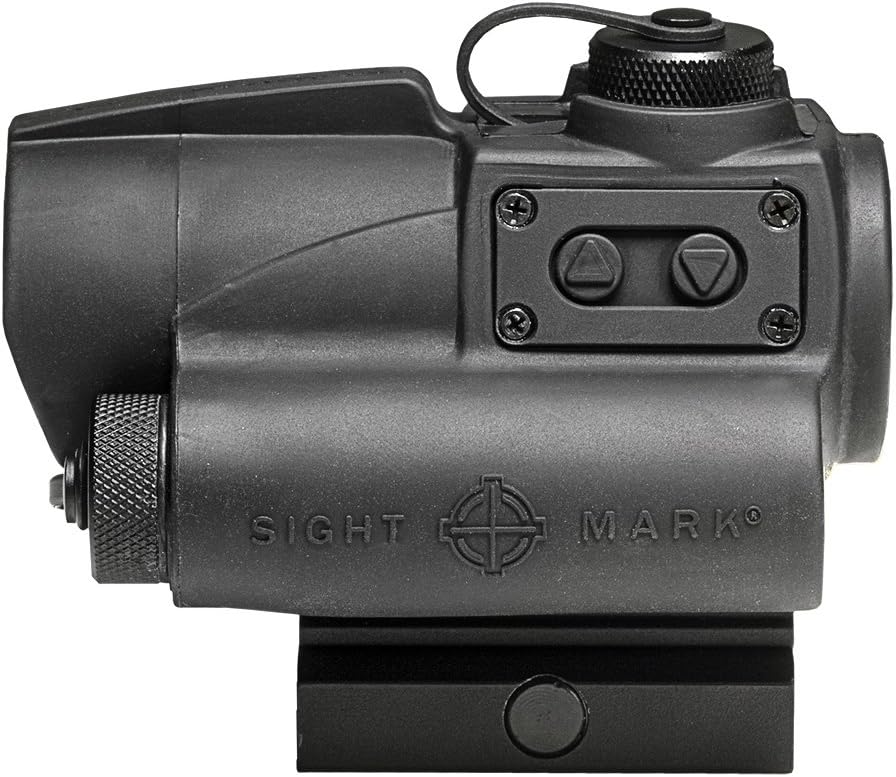

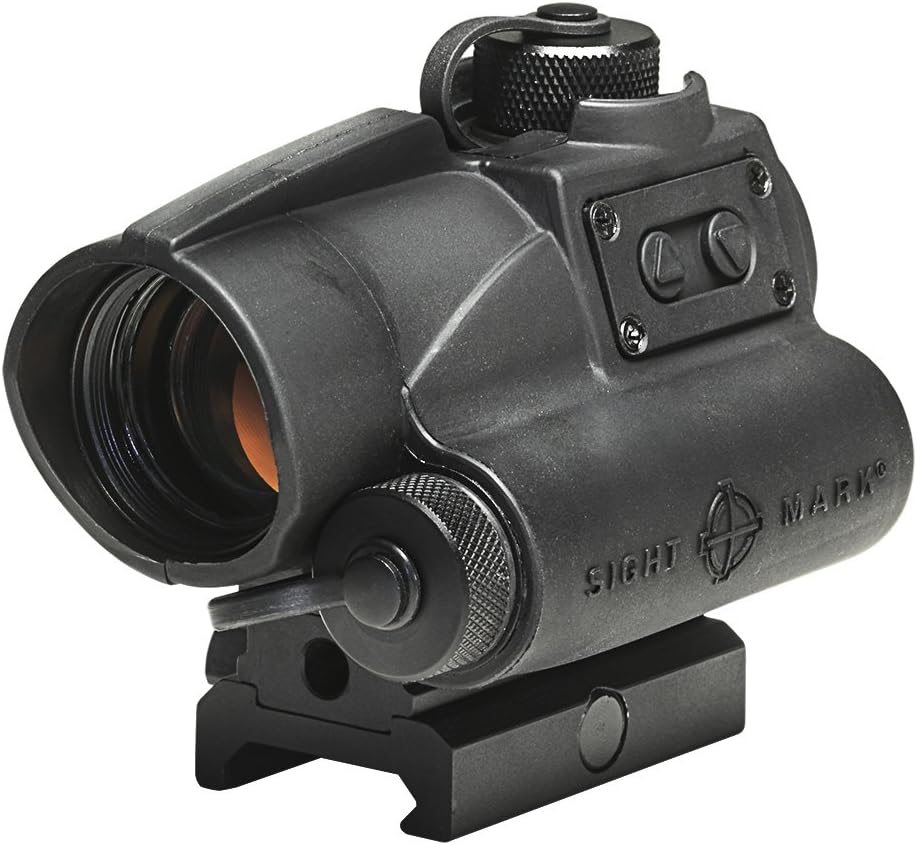

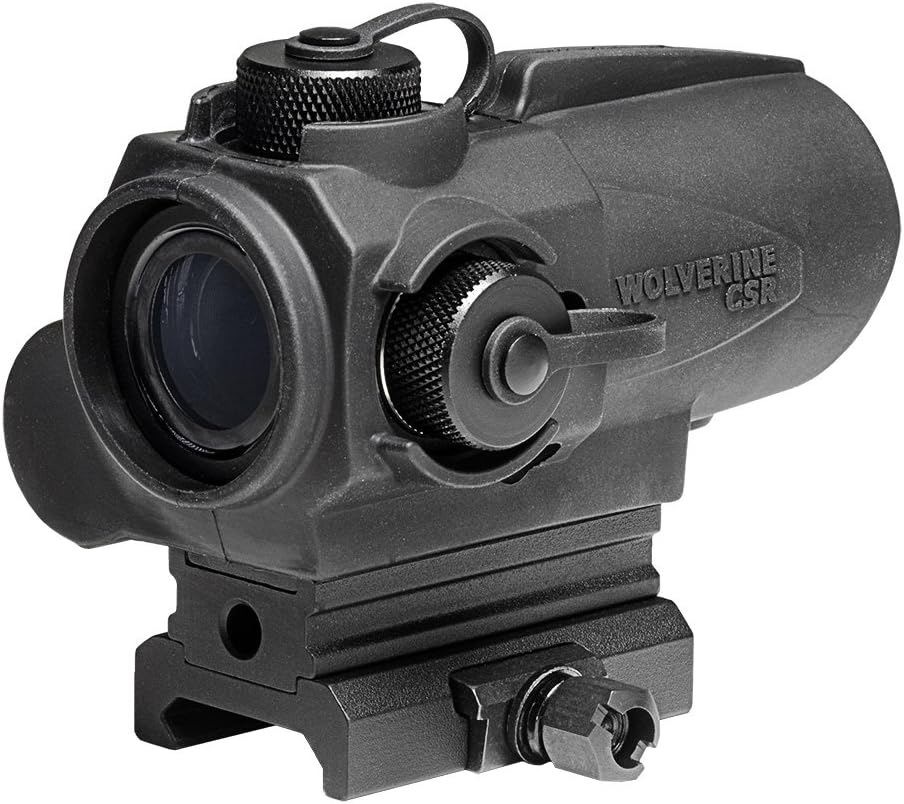

Designed for use on AR’s and shotguns, the Sightmark Wolverine CSR LQD is a compact red dot sight featuring a 4 MOA dot reticle and a locking, quick detach mount for increased versatility. Powered by a single AA battery, the Wolverine is operable up to 1,000,000 hours on its low brightness setting. Ideal for tactical, hunting and competition shooting, the Wolverine CSR LQD boasts digital switch controls for quick and easy operating and features a rubber-armored housing for ultimate protection.
Included in Package
- Rubber lens cover
- Picatinny mount
- Riser for absolute cowitness
Batteries Used
- Type: AA
- Quantity: 1
Product Downloads
- Product Manual English
- Product Manual German
- Product Manual French
- Product Manual Spanish
- Product Manual Italian
Features
- 1,000,000 hours off of one AA battery

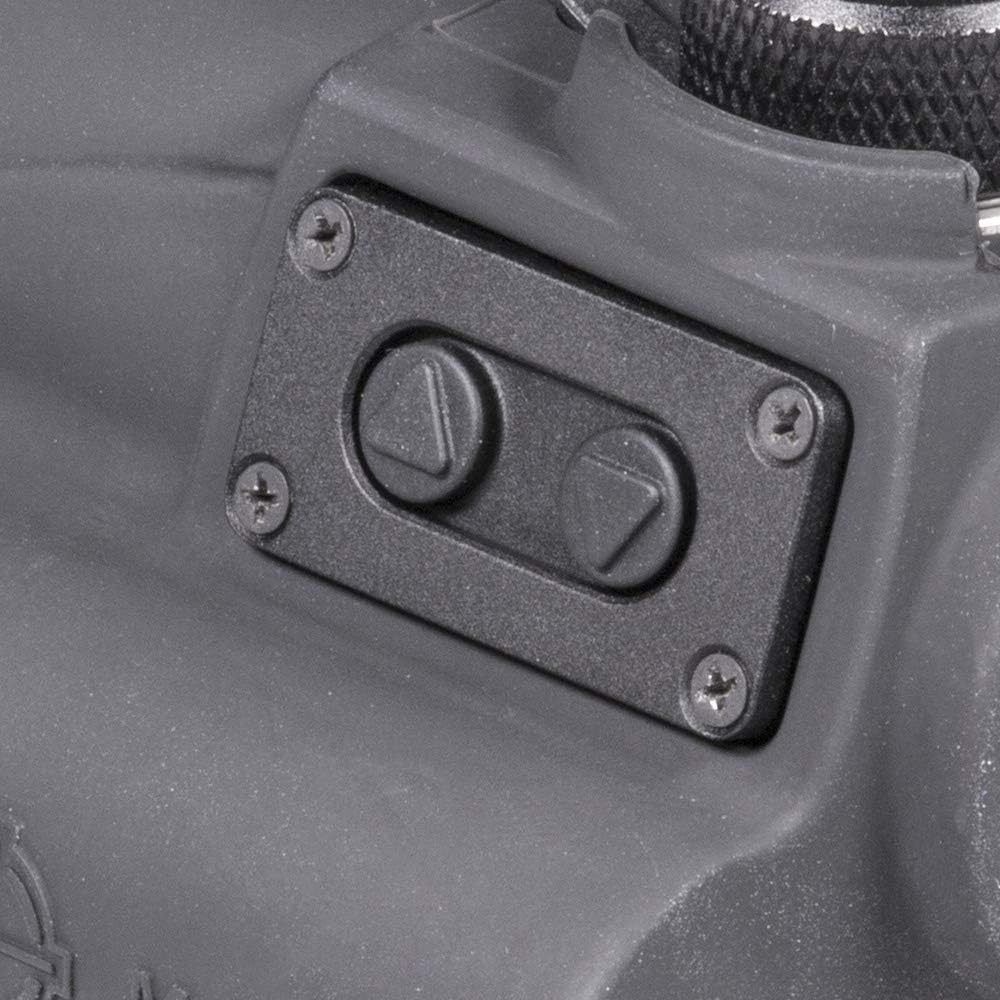

- Digital switch brightness controls
- 4 MOA red dot reticle
- Locking, quick detach mount
- Scratch resistant, anti-reflective lens coating
- Rubber-armored, single piece 6061-T6 aluminum housing
- Adjustable mount height
- IP67 waterproof rating
- Fogproof, nitrogen purged
- Night vision compatible
- Unlimited eye relief
- Operable in temperatures from -22° to 122° F
| Reticle, Type | 4 MOA Dot |
|---|---|
| Reticle, Color | Red |
| Reticle, Illuminated | yes |
| Setting, Brightness | off, NV1, NV2, 3-10 |
| Magnification | 1 x |
| Dimension, Window | 23 mm |
| Material, Window | glass |
| Eye Relief | unlimited mm |
| Windage Range of Adjustment | 120 MOA |
| Elevation Range of Adjustment | 120 MOA |
| MOA Adjustment | 1 MOA |
| Finish/Color | Matte black |
| Body Material | Aluminum 6061-T6 / rubber |
| Maximum Recoil, Gs | 800 Gs |
| IP Standard | IP67 (submergible to 1m / 3ft) |
| Shockproof | yes |
| Fog Proof | yes |
| Lens Coating | AR red |
| Mount Type | Picatinny |
| Battery Type | AA |
| Battery Life | (high) 900 - (low) 1,000,000 / 50,000 (setting 6) hours |
| Battery Voltage | 1.5 V |
| Operating Temp, F/?C | -22 to 122 / -30 to 50 F/C |
| Length, in/mm | 3.4 in / 87.5 mm |
| Width, in/mm | 2.8 in / 71.6 mm |
| Height, in/mm | 2.4 in / 61.1 mm |
| Weight, oz/g | 11 oz / 312 g |
