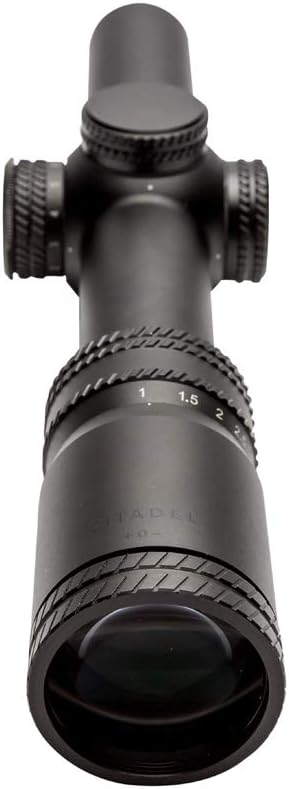

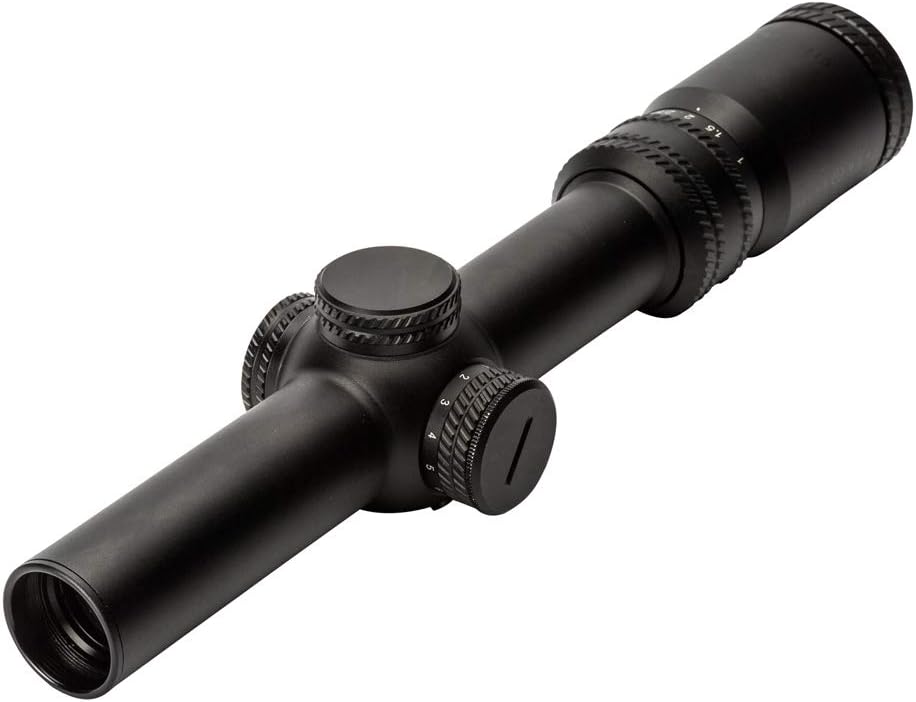

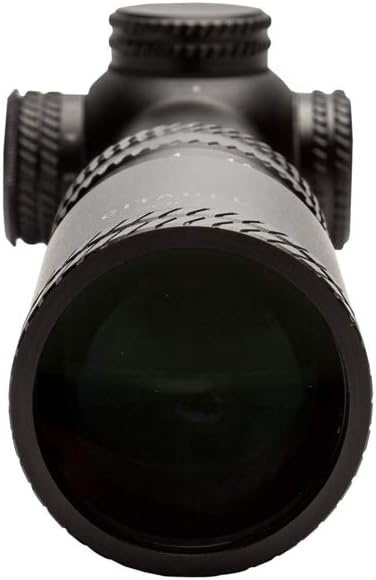

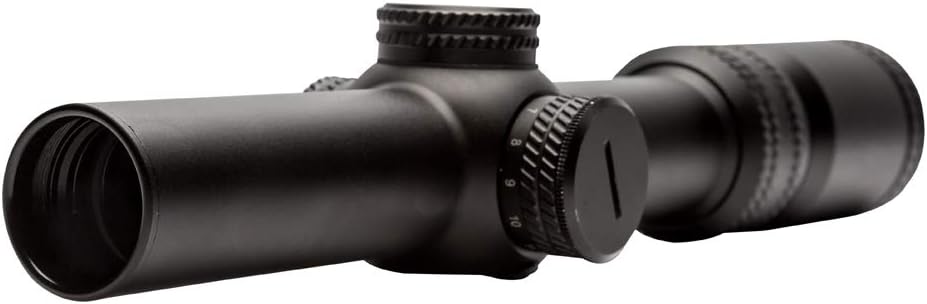

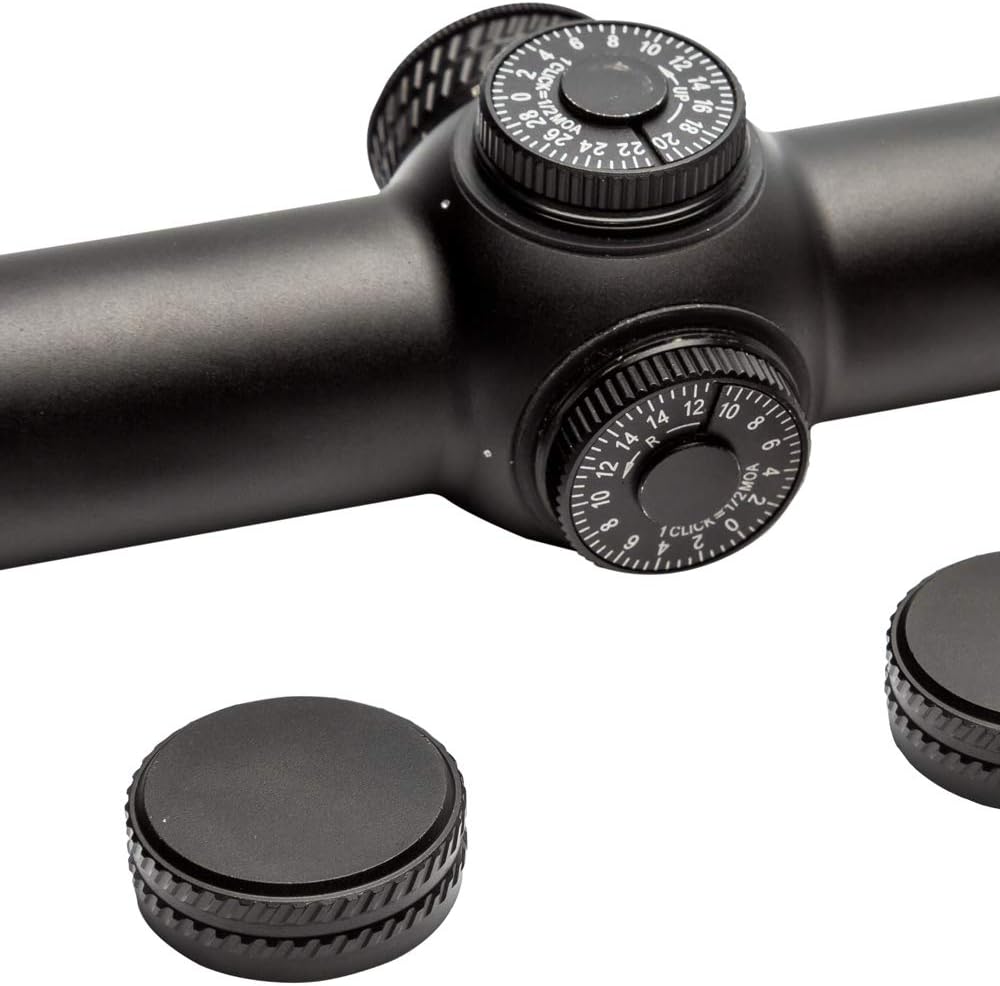

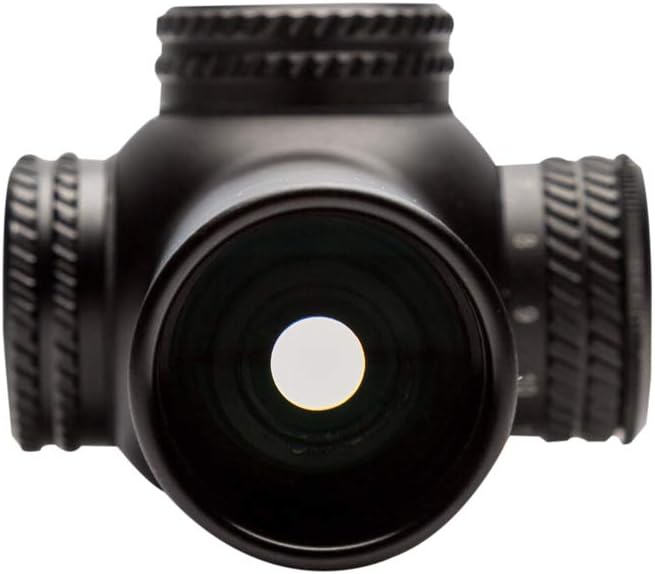

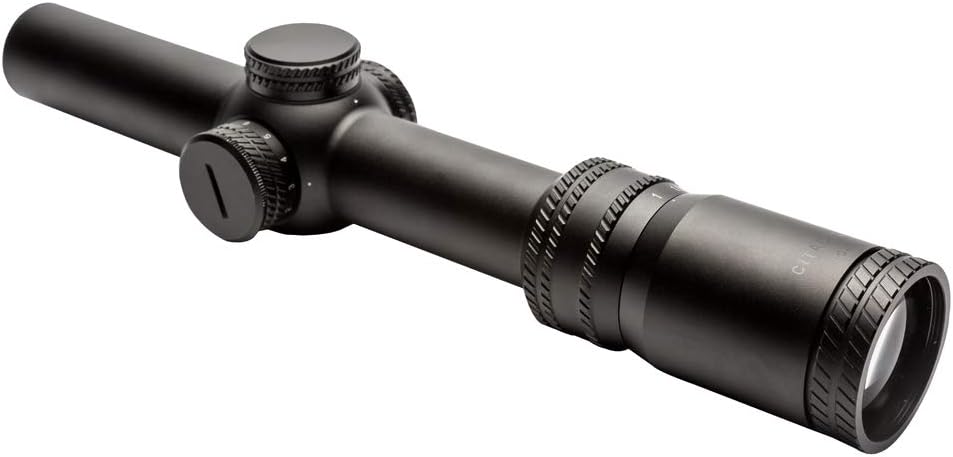

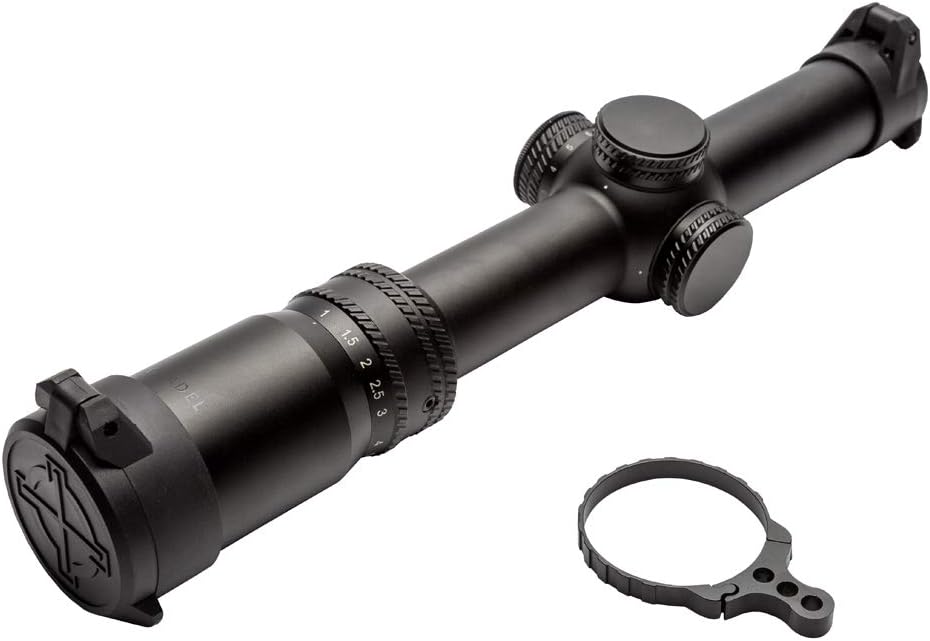

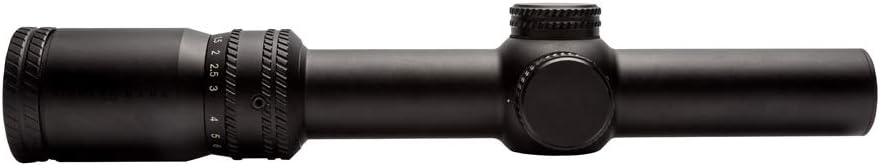

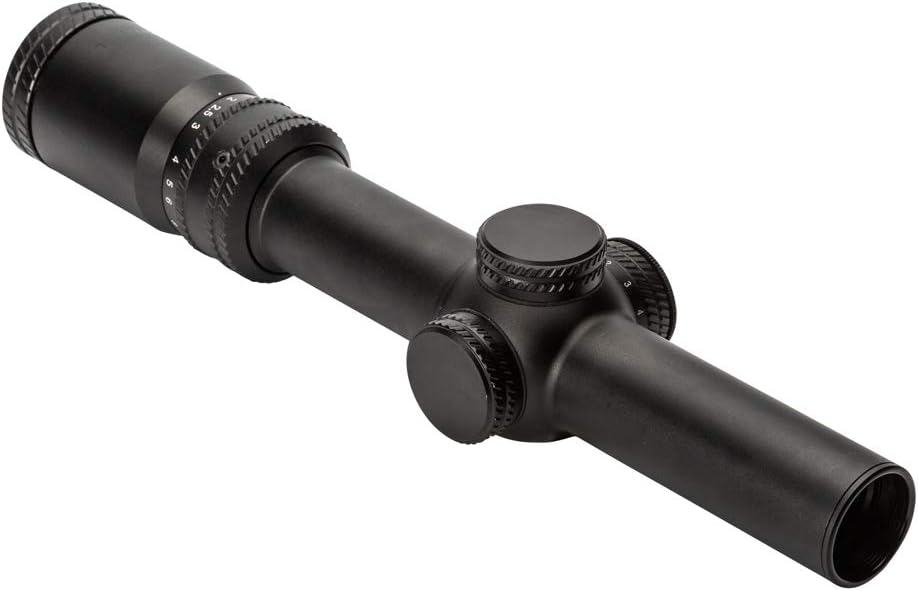

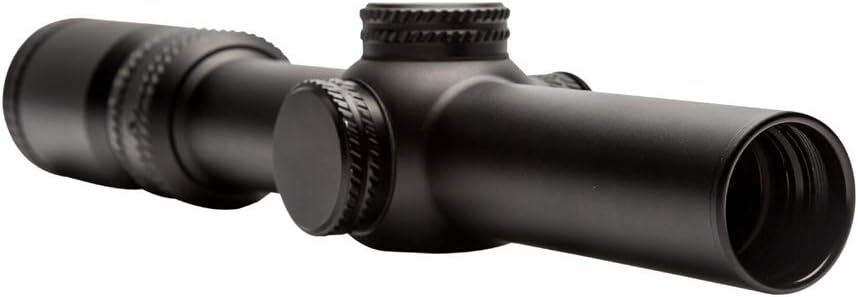

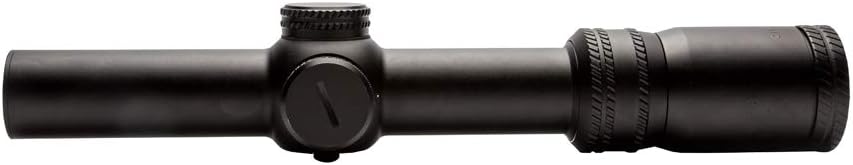

Offering a wide magnification range for close to mid-range shooting, the Citadel 1-6x24 combines impressive performance with a stealthy appearance. Designed with real shooters in mind, the Citadel 1-6x features a second focal plane BDC reticle calibrated for 55gr 5.56/.223, red reticle illumination for contrast against targets and low light shooting and fully multi-coated optics. Capped, low profile turrets protect zero and add to the Citadel’s no-nonsense, subdued appearance. A single-piece, 30mm tube and aircraft grade aluminum construction make the Citadel extremely durable and IP67 waterproof. Ideal for a variety of firearms, including ARs and bolt actions rifles, the Citadel 1-6x24 CR1 includes flip up lens caps, a handy throw lever and one CR2032 battery.
Included in Package

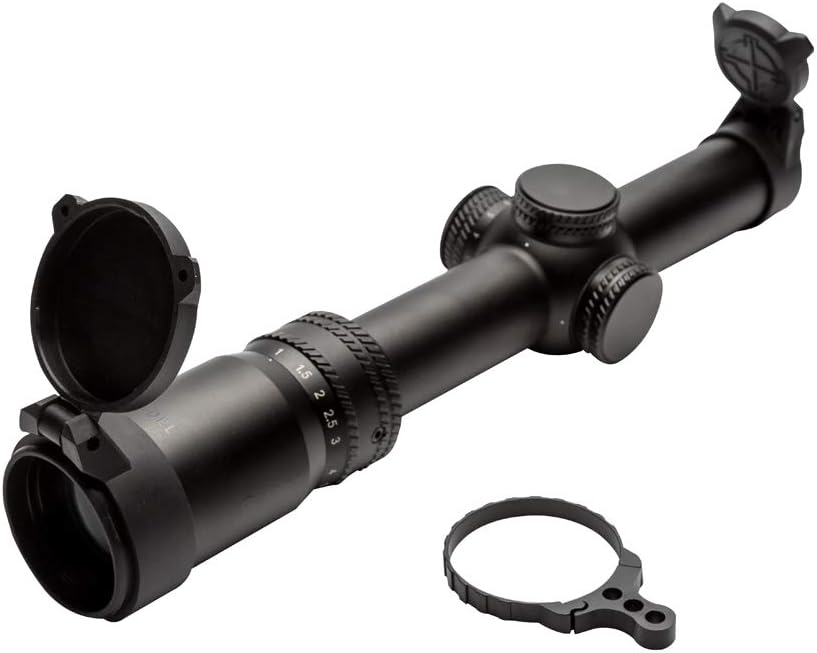

- Flip up lens covers
- Throw lever attachment
- CR2032 battery
Batteries Used
Product Downloads
Features

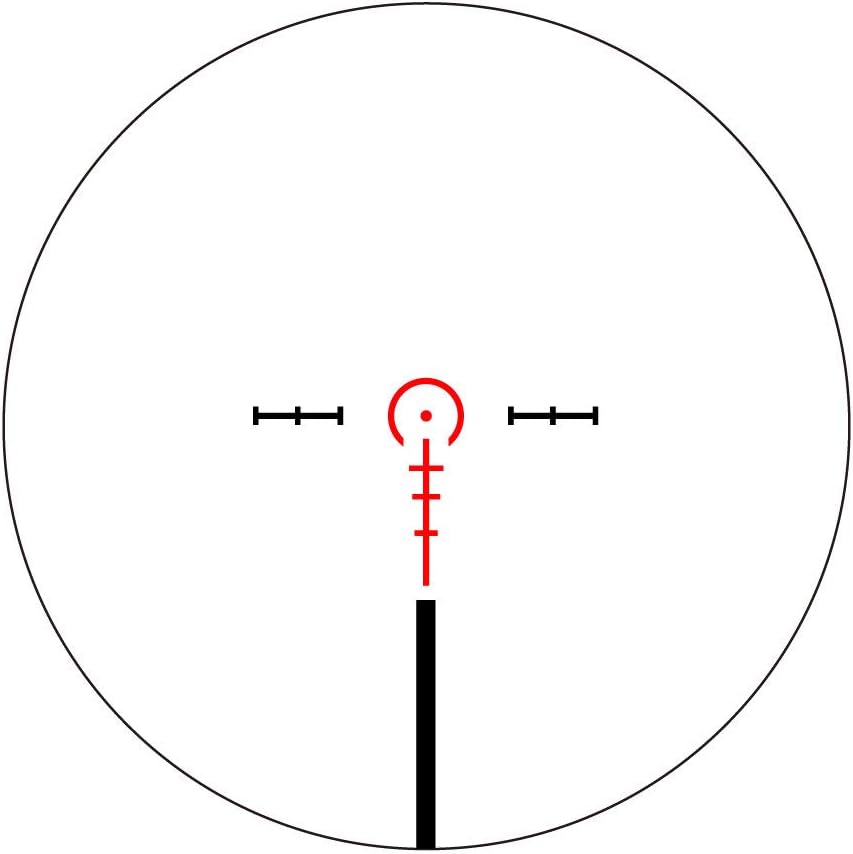

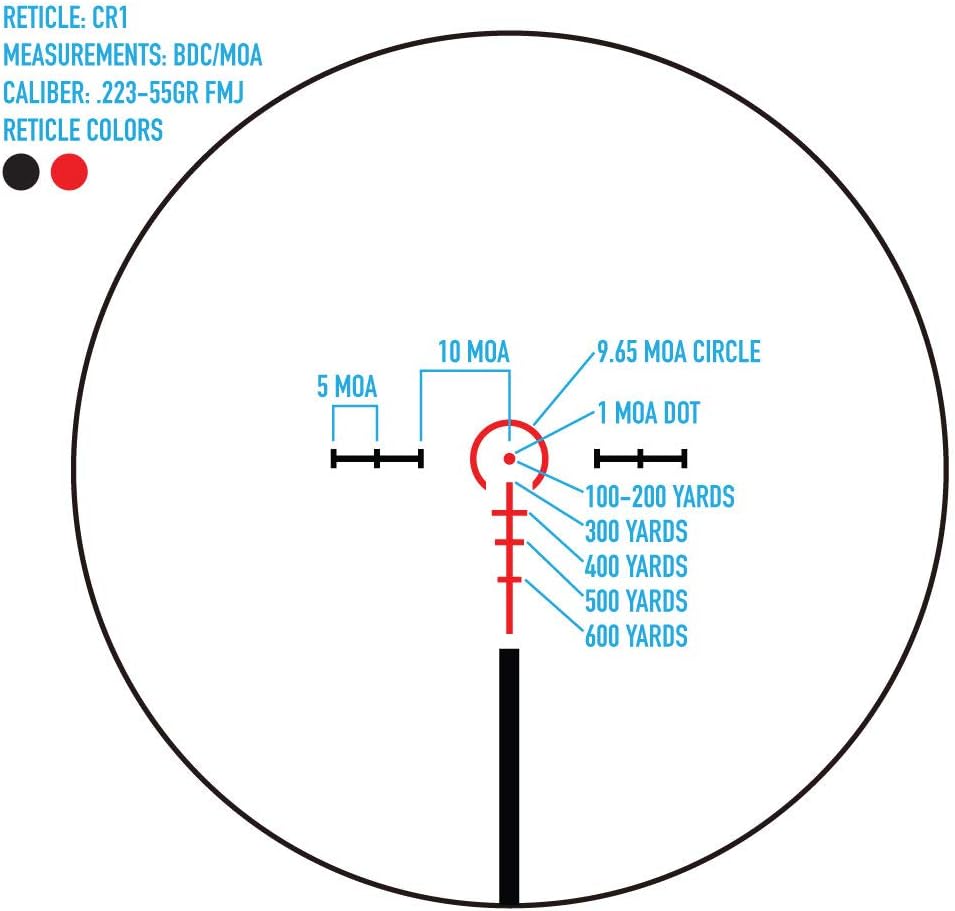

- BDC reticle calibrated for .223 55gr
- 6:1 zoom ratio

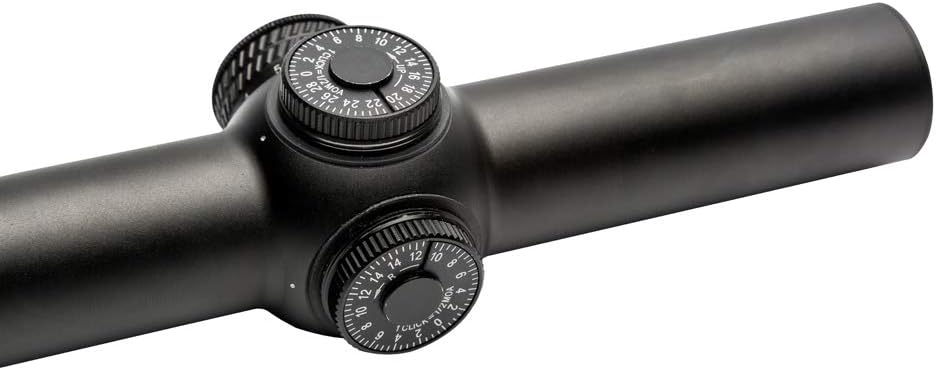

- Capped
- low-profile turrets
- Second focal plane reticle
- Red illuminated reticle
- Single-piece 30mm tube
- Shockproof
- fogproof
- waterproof
| Reticle, Type |
CR1 |
| Reticle |
Etched glass |
| Reticle, Color |
Red |
| Illuminated (yes/no) |
Yes |
| Reticle Brightness Setting |
0 - 11 |
| Magnification |
1 - 6 x |
| Objective Lens |
24 mm |
| Diameter, Eyepiece |
40 / 1.6 (mm/in) |
| Diameter, Exit Pupil |
3.85 - 8 mm |
| Eye Relief |
2.9 - 3.5 / 73.66 - 88.9 (in/mm) |
| Field of view, m@100m |
6 - 35.5 |
| Field of view, ft@100yd |
18 - 106.7 |
| Diopter Adjustment |
+2 to -2 |
| Diameter, Tube |
30 / 1.18 (mm/in) |
| Parallax Setting |
100 yds |
| Focal Plane |
2nd |
| MOA Adjustment |
1/2 MOA |
| Windage Range of Adjustment |
120 MOA |
| Elevation Range of Adjustment |
120 MOA |
| Windage & Elevation, Lock |
No |
| Maximum Recoil |
.338 Win |
| Battery Type |
CR2032 |
| Battery life, hours |
70 - 100 Hours |
| Battery Voltage, V |
3 V |
| Sunshade |
No |
| Nitrogen Filled |
Yes |
| Shockproof |
Yes |
| Fog Proof |
Yes |
| IP Standard |
IP67 - waterproof and dustproof |
| Operating temperature, F/C |
0 to 120 / -17 to 49 F/C |
| Body Material |
Aluminum |
| Finish/Color |
Matte black |
| Lens Coating |
Fully multi-coated |
| Length (in/mm) |
10.7 / 272 (in/mm) |
| Width (in/mm) |
2.2 / 58 (in/mm) |
| Height (in/mm) |
1.7 / 42 (in/mm) |
| Weight, oz |
16.2 oz. |
